OUTDOOR TERMINATIONS
0.0 (0 đánh giá)
Liên hệ
Gọi lại cho tôiĐể lại số điện thoại, chúng tôi sẽ tư vấn sớm nhất
The outdoor terminations for 66~230 are available for both the -based rubber stress relief cone with an epoxy housing (so called -fabricated type) and the silicone rubber sleeve (so called -molded type). The former uses mechanical devices to maintain the interface pressure and the latter uses elastic retention of silicone material itself.
Thông tin sản phẩm

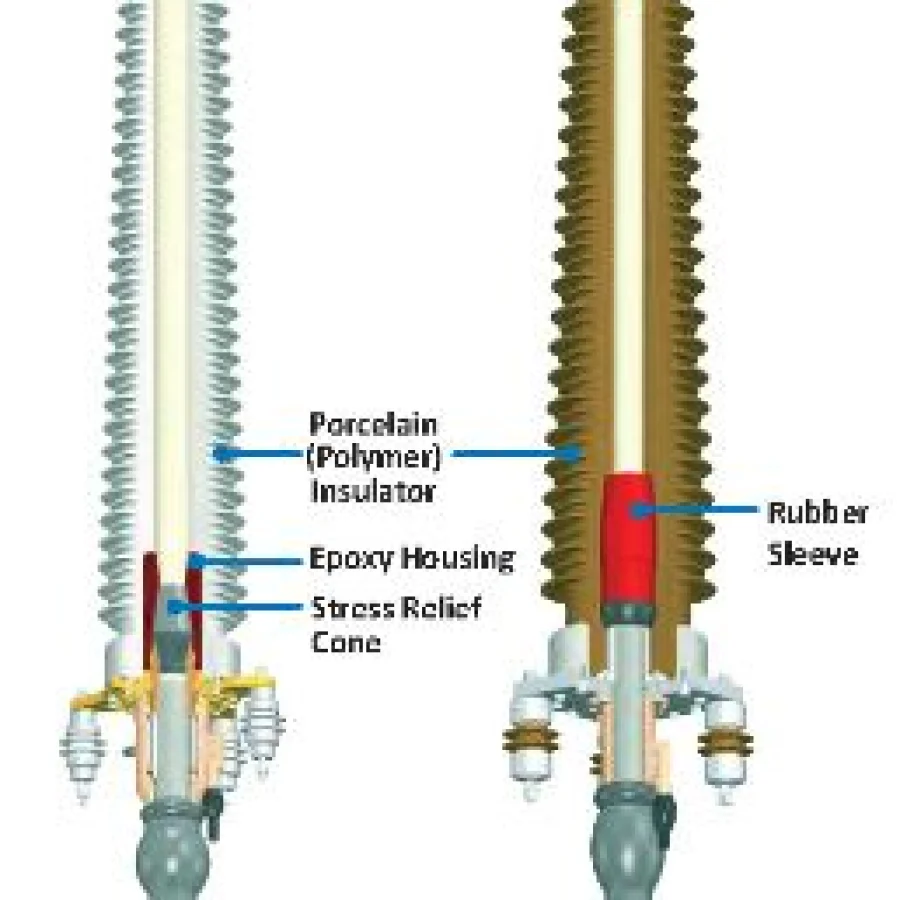

•The outdoor terminations for 66~230kv are available for both the EPR-based rubber stress relief cone with an epoxy housing (so called pre-fabricated type) and the silicone rubber sleeve (so called pre-molded type).
•The former uses mechanical devices to maintain the interface pressure and the latter uses elastic retention of silicone material itself
•In both cases, the main insulation components are fully examined and tested in the factory. The maximum allowable cable conductor size is 2500mm2 .Upon request of the customer, either porcelain or composite hollow insulator can be supplied
•The former uses mechanical devices to maintain the interface pressure and the latter uses elastic retention of silicone material itself
•In both cases, the main insulation components are fully examined and tested in the factory. The maximum allowable cable conductor size is 2500mm2 .Upon request of the customer, either porcelain or composite hollow insulator can be supplied
